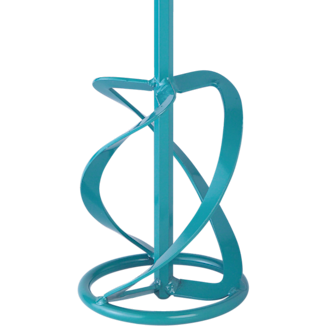

Heavy Duty 3-Blade Paddle MK

Designed for all heavy and highly-viscous materials



  • Concrete
  • Mortar
  • Plaster
  • Underlay­ments
  • Quartz Filled Epoxy Mortars
  • Smooting Cement

The particularly rugged professional mixing paddle for though day-to-day construction site service. 3 mixing blades for fast mixing results.


Data Sheet Mixing Paddles
Down­load
Catalogue Collomix North America
Down­load
Item UPC Product Capacity Connection
40115-225 849215000074 MK 140 HF 5.3 - 10.6 gals ¾” HEXAFIX®
40116-225 849215000166 MK 160 HF 8.0 - 15.9 gals ¾” HEXAFIX®
hexafix-couling-collomix
HEXAFIX Quick-Coupling Adapter
item no. 49517
upc 849215000142

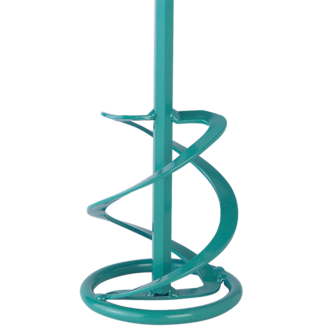

Universal paddle WK

Designed for all sticky and viscous materials



  • Masonry Cement
  • Joint Cement
  • Stucco
  • Grout
  • Epoxy Resin Grout

Suitable for diverse applications, this mixing paddle is notable for very good conveyance of the material. Two mixing helices for easy guidance in the material and minimal stress on the machine.


Data Sheet Mixing Paddles
Down­load
Catalogue Collomix North America
Down­load
Item UPC Product Capacity Connection
40112-225 849215000050 WK 120 HF 4.0 - 6.6 gals ¾” HEXAFIX®
40113-225 849215000067 WK 140 HF 6.6 - 9.5 gals ¾” HEXAFIX®
hexafix-couling-collomix
HEXAFIX Quick-Coupling Adapter
item no. 49517
upc 849215000142

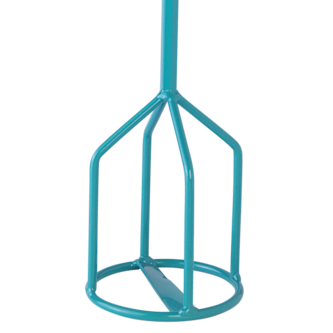

Improved "Bird Cage" Paddle KR

Designed for all sticky materials



  • Tile Adhesive
  • Grouting Compounds
  • Fillers
  • Epoxy Grouts
  • Self-Leveling underlay­ments
  • Glues

This mixing paddle generates high shear forces for a powerful effect and prevention of lump formations. Easy to clean because material does not stick.


Data Sheet Mixing Paddles
Down­load
Catalogue Collomix North America
Down­load
Item UPC Product Capacity Connection
40120-225 849215000098 KR 120 HF 4.0 - 6.6 gals ¾” HEXAFIX®
40121-225 849215000104 KR 140 HF 6.6 - 9.2 gals ¾” HEXAFIX®
40122-225 849215001279 KR 160 HF 9.2 - 13.2 gals ¾” HEXAFIX®
hexafix-couling-collomix
HEXAFIX Quick-Coupling Adapter
item no. 49517
upc 849215000142

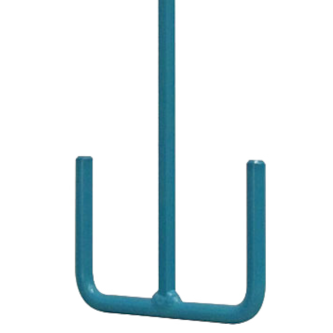

Bituminous / Waterproof Paddle AR

Designed for bitumen sealants



  • Bitumen Coatings
  • Waterproof Coatings

The AR mixing paddle generates high shear forces with prevent the formation of lumps. The mixing paddle supports a good material removal from the bottom and rim of the basket. Easy to clean.


Data Sheet Mixing Paddles
Down­load
Catalogue Collomix North America
Down­load
Item UPC Product Capacity Connection
40140-225 849215003761 AR 170 HF 6.6 - 10.5 gals ¾” HEXAFIX®
hexafix-couling-collomix
HEXAFIX Quick-Coupling Adapter
item no. 49517
upc 849215000142

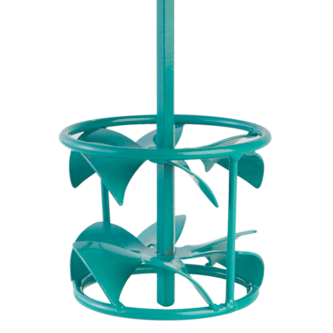

Low Viscosity Paddle DLX

Designed for leveling compounds and liquid materials



  • Leveling Compound
  • Slurry
  • Bitumen-Free Sealing
  • Cementi­tious Grout

The DLX mixing paddle was specially developed for the optimum preparation of thin-bed mortar for the cementing of concrete precision blocks. The two turbine blades, fitted one above the other, provide a strong flow of material to prevent the formation of lumps.


Data Sheet Mixing Paddles
Down­load
Catalogue Collomix North America
Down­load
Item UPC Product Capacity Connection
40109-225 849215003754 DLX 120 HF 3.9 - 8.0 gals ¾” HEXAFIX®
40983-225 84921555128 DLX 152 HF 8.0 - 13.2 gals ¾” HEXAFIX®
hexafix-couling-collomix
HEXAFIX Quick-Coupling Adapter
item no. 49517
upc 849215000142

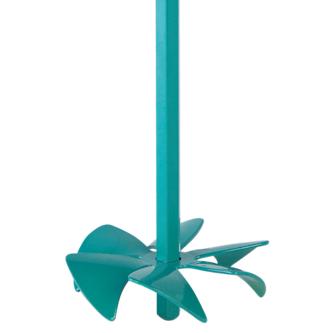

Low Viscosity Paddle LX

Designed for all liquid and spreading materials



  • Wall Paints
  • Epoxy Coatings
  • Sealings
  • Coverings

The super-fast turbo mixing paddle. The paddle generates a strong flow from the bottom up. Optimal flow conditions when used with high speed drives.


Data Sheet Mixing Paddles
Down­load
Catalogue Collomix North America
Down­load
Item UPC Product Capacity Connection
40108-225 849215000043 LX 120 HF 4.0 - 6.6 gals ¾” HEXAFIX®
hexafix-couling-collomix
HEXAFIX Quick-Coupling Adapter
item no. 49517
upc 849215000142

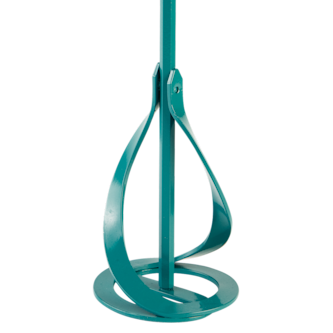

Classical paint paddle FM

Designed for flowing materials



  • Paints
  • Lacquers
  • Primers
  • Fine and Creamy Plasters

The classical paint mixing paddle, the FM is a highly versatile tool for use with average machine loads. This mixing paddle is ideal for both DIY and professional use.


Data Sheet Mixing Paddles
Down­load
Catalogue Collomix North America
Down­load
Item UPC Product Capacity Connection
40880-225 849215004195 FM 60 S - 1.3 gals 3/8" Drill Chuck

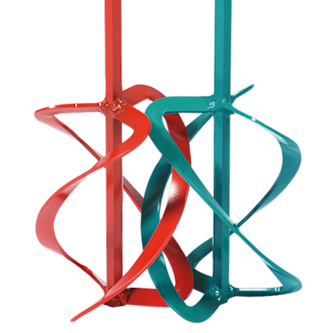

Dual Mixing Paddle MKD

Ideal for almost every mixing material



  • All materials and viscosities

Paddle set only for the use with a Xo 55 R duo double paddle mixer. The MKD dual mixing paddles are interchangeable to enable the mixing action to be controlled; almost all viscosities and mixing materials can be mixed.


Data Sheet Mixing Paddles
Down­load
Catalogue Collomix North America
Down­load
Item UPC Product Capacity Connection
44070 849215000159 MKD 120 HF 5.2 - 13.2 gals ¾” HEXAFIX®
44080 849215000166 MKD 140 HF 10 - 23 gals ¾” HEXAFIX®
hexafix-couling-collomix
HEXAFIX Quick-Coupling Adapter
item no. 49517
upc 849215000142
